1891: New 12-Inch Uconnect 5 Upgrade Wiring Harness Only for Select 2019-2024 Ram 1500 2500 3500, 5-Inch Radio or 8.4-Inch Uconnect 4/4C, 6-Cable Adapter Set
Item Weight: 3.2 ounces
Connector Type: Usb, Lvds
Number of Items: 5
ManufacturerRCRBT
Unit Count: 6 Count
1.WIRING HARNESS ONLY — NOT A COMPLETE SCREEN KIT: This package includes six wiring adapter cables for selected Uconnect radio and display conversions. The 12-inch display, radio or receiver module, dashboard bezel, HVAC controls, mounting hardware and programming tools are not included.

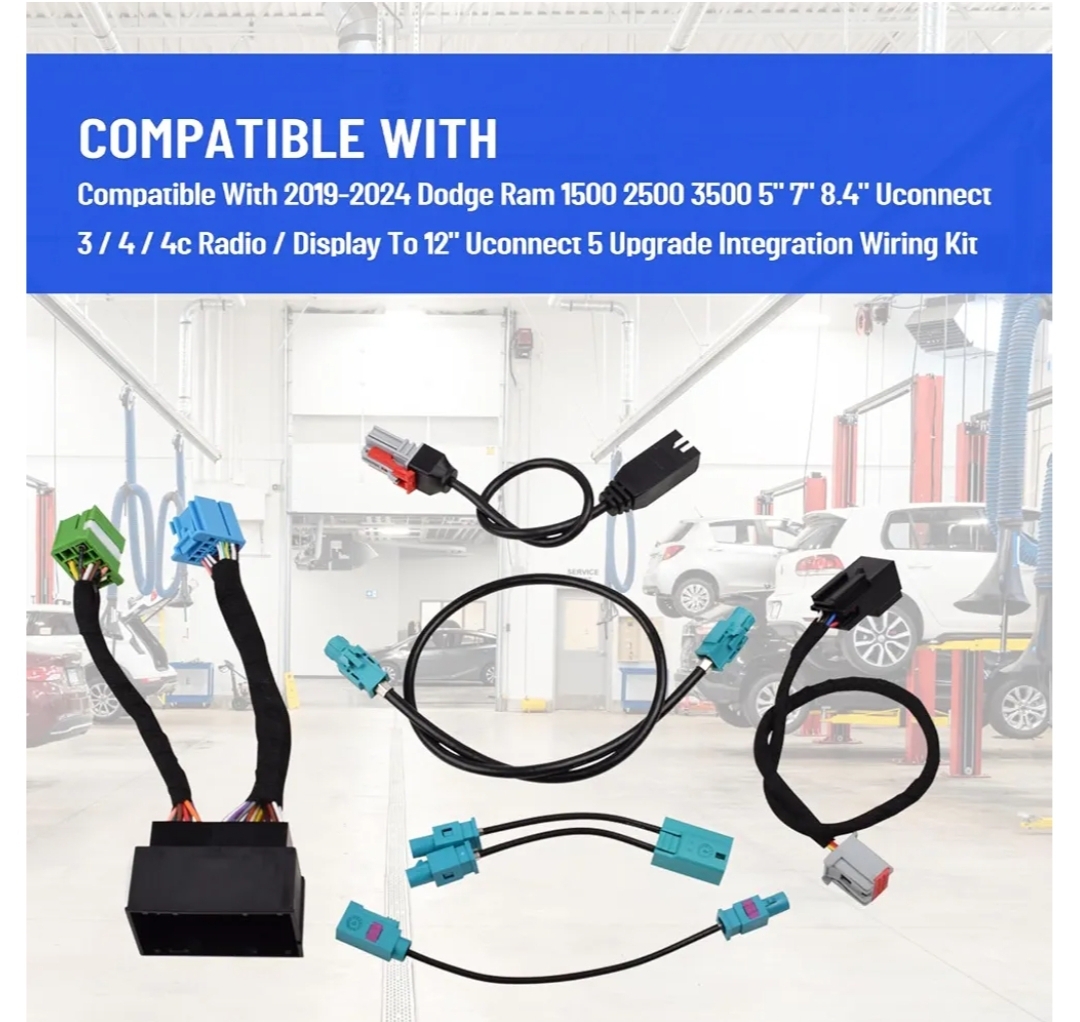

2.SELECT RAM TRUCK APPLICATIONS: Designed for select 2019-2024 Ram 1500, 2500 and 3500 configurations using a factory 5-inch radio or an 8.4-inch Uconnect 4/4C system and upgrading to a compatible 12-inch Uconnect 5 display and radio assembly. Year and model alone do not confirm fitment.

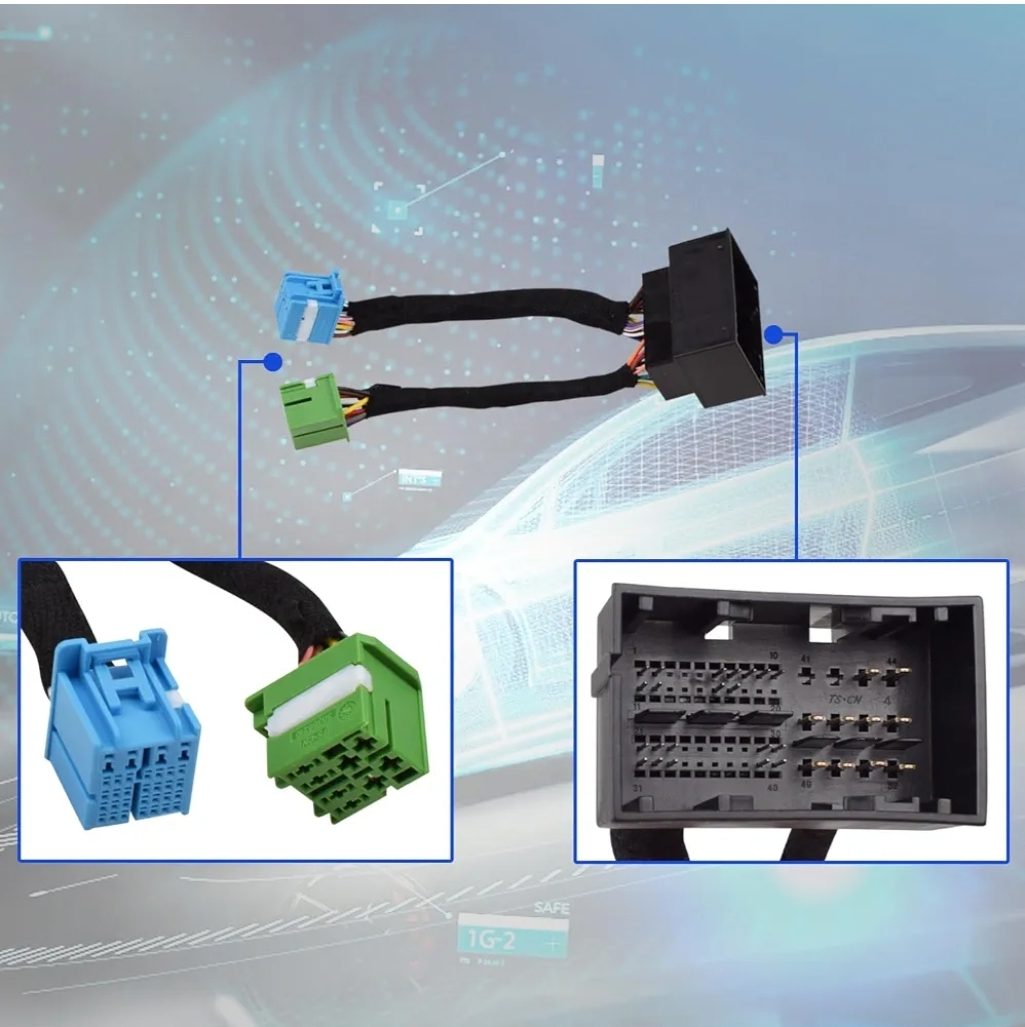

3.VERIFY THE COMPLETE SYSTEM BEFORE ORDERING: Confirm the original screen size, radio generation, truck body configuration, target 12-inch display part number and radio module part number. Compare the main connector, locking tabs, pin layout, LVDS connector, USB connector and antenna connectors with the listing photos before purchase.

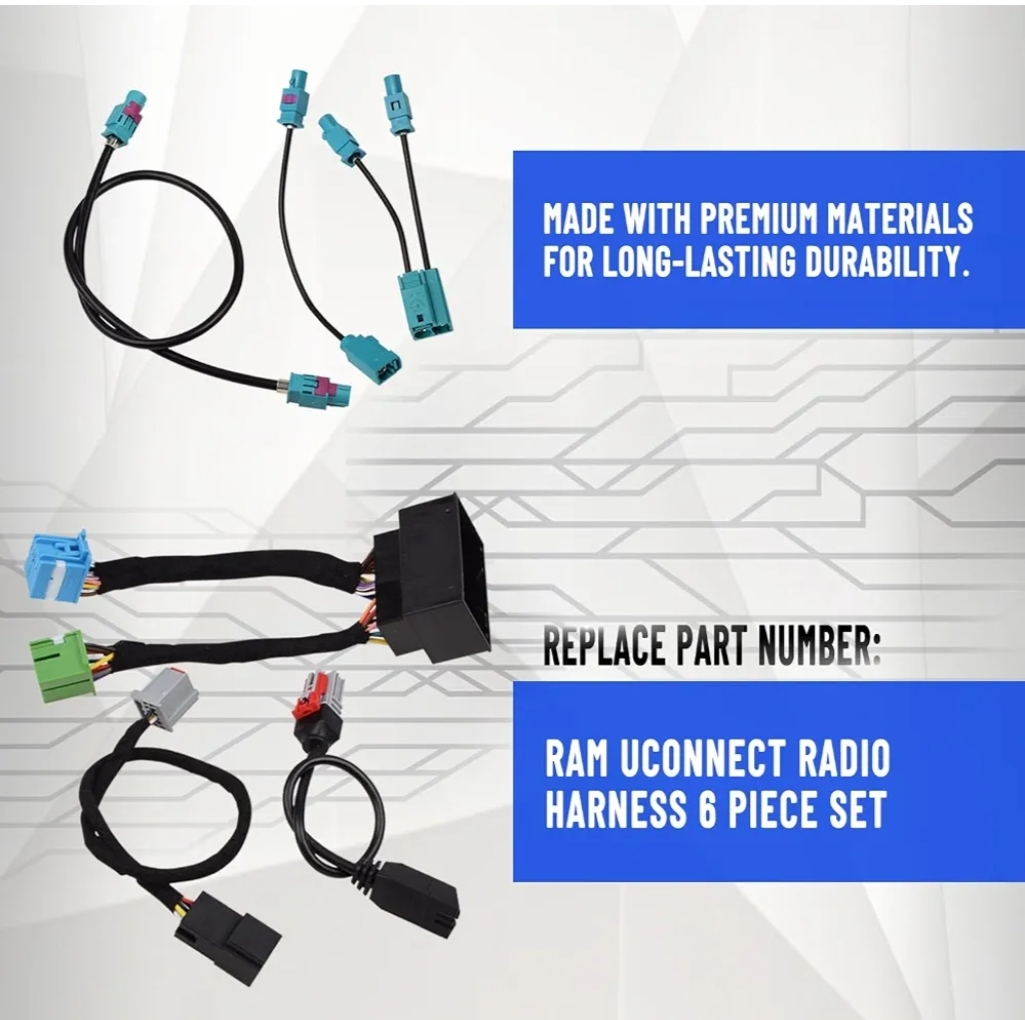

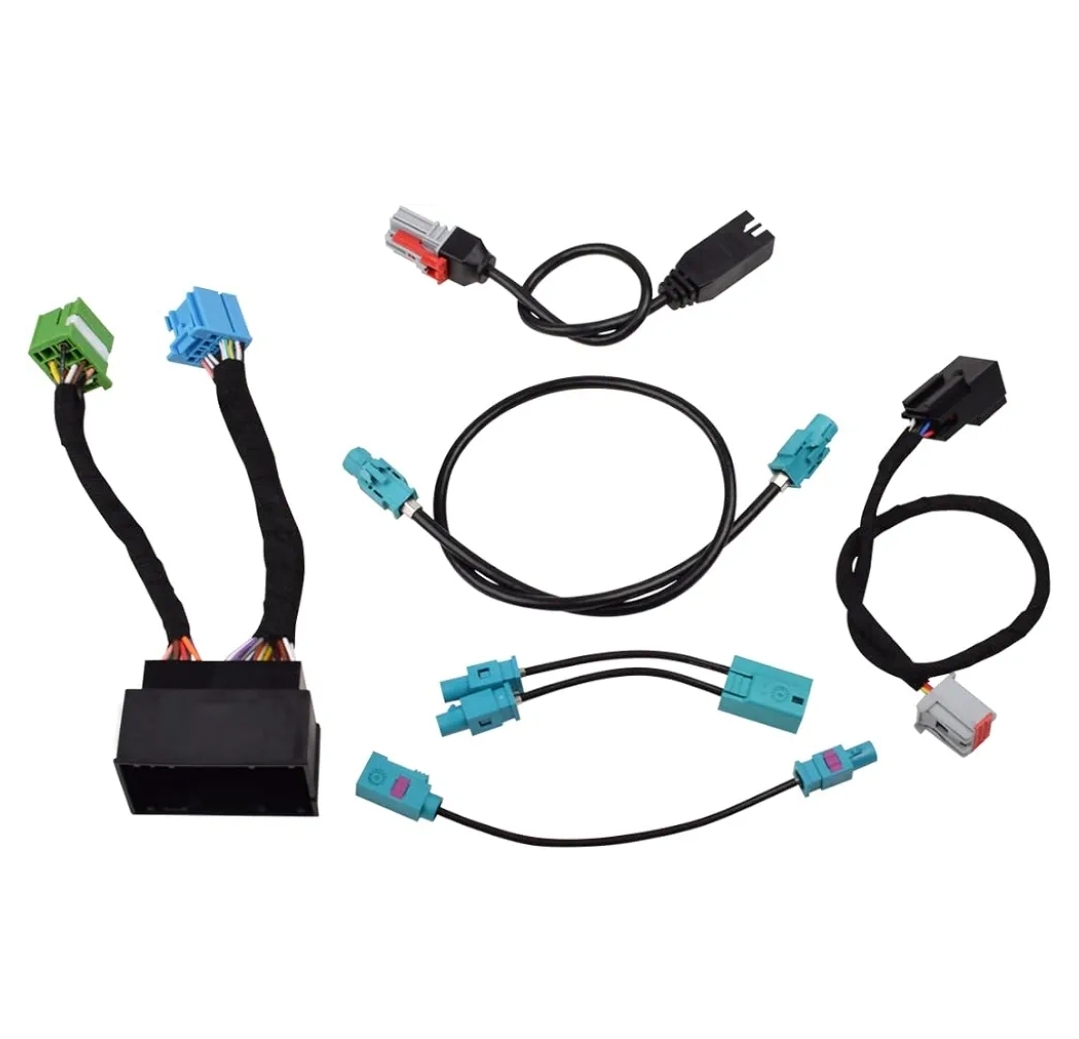

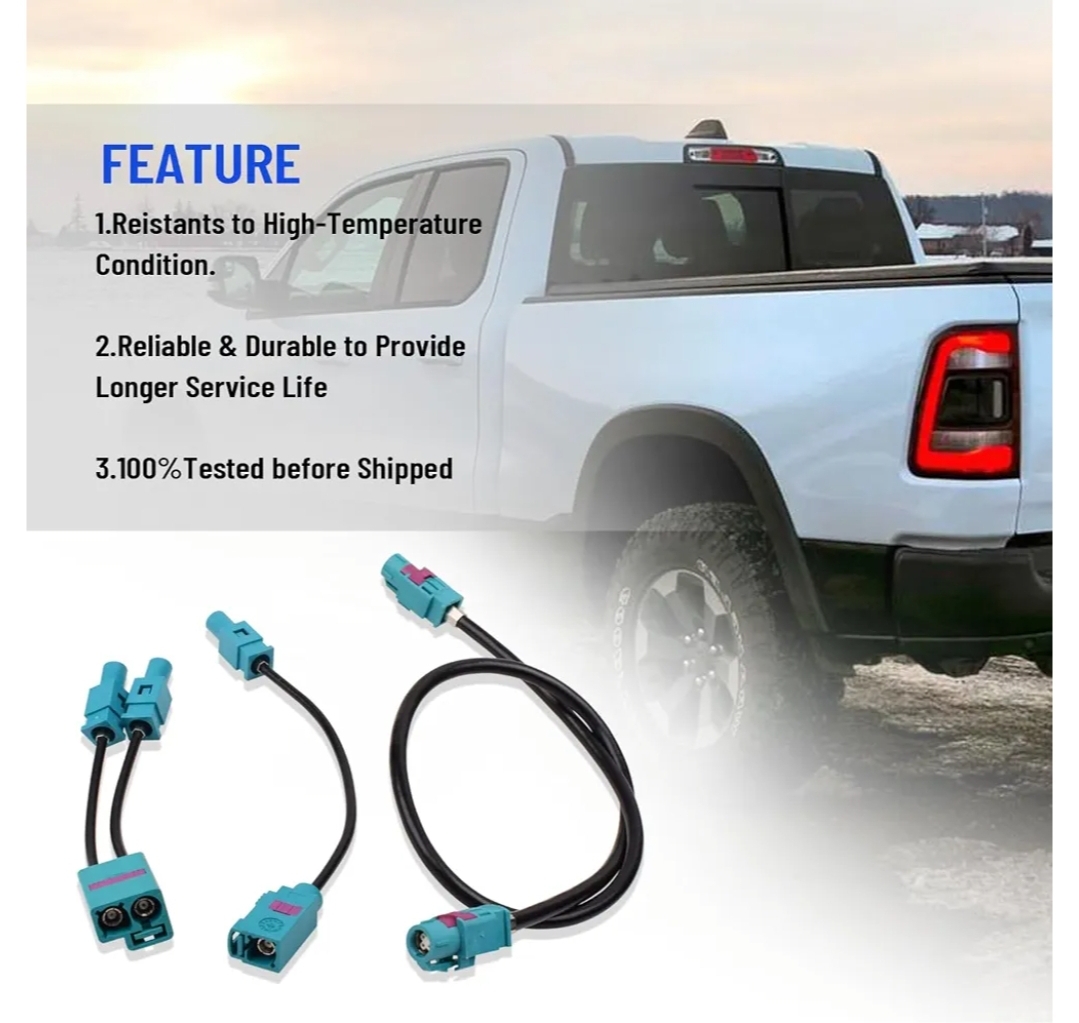

4.SIX-PIECE ADAPTER HARNESS SET: Package includes 1 main Uconnect 5 wiring harness, 1 display adapter harness, 1 LVDS cable, 1 USB adapter harness and 2 antenna adapter leads. The required antenna connections and cable usage may vary according to the original radio and donor equipment.
5.ADDITIONAL PARTS OR PROGRAMMING MAY BE REQUIRED: This harness set does not make an incompatible screen or radio module compatible by itself. Additional trim panels, controls, modules, mounting parts, software configuration or vehicle-specific programming may be required. Installation by an experienced automotive electronics technician is recommended.
