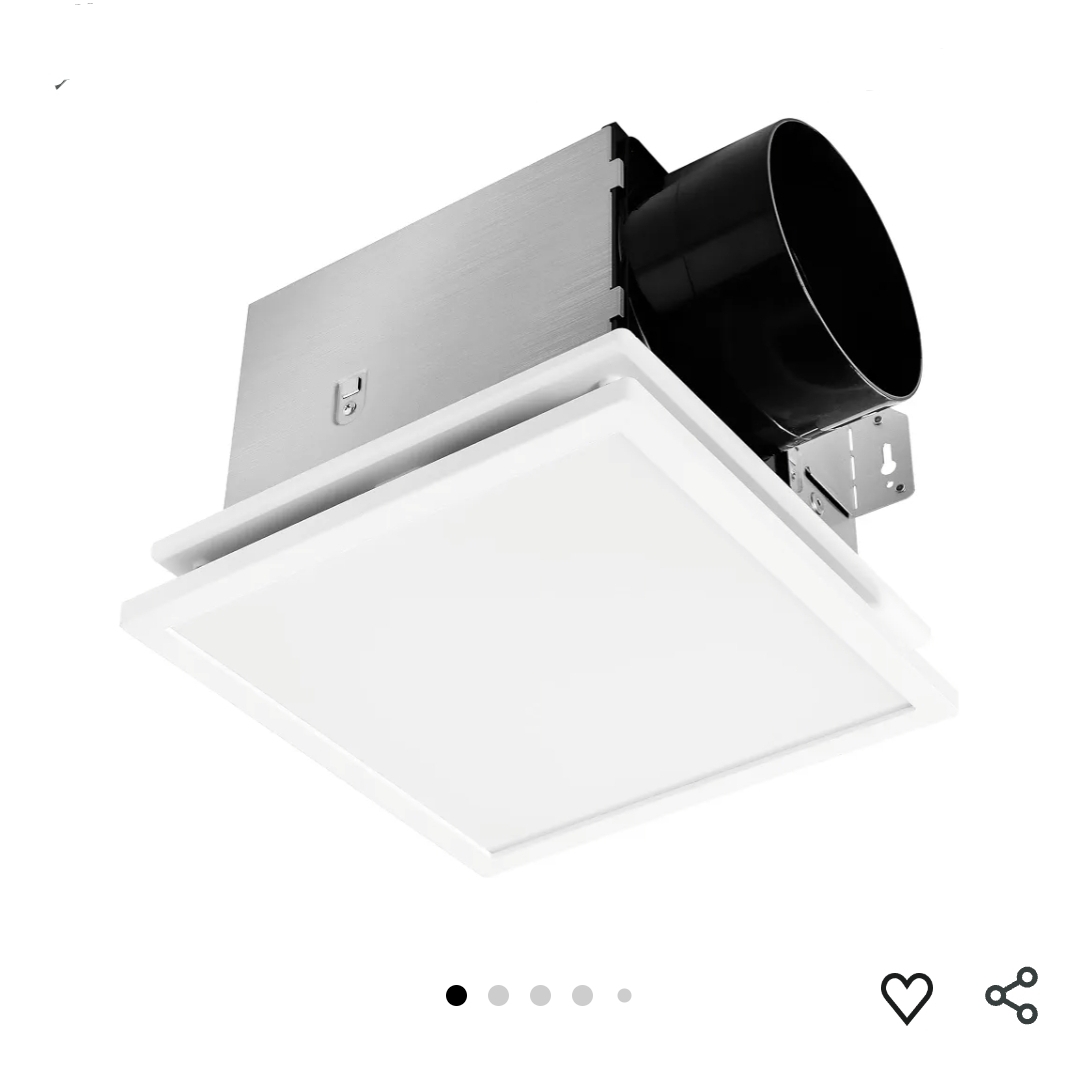

4690: New Bathroom Exhaust Fan with Light And Night Light,150 CFM
1000lm Dimmable 5CCT LED Light, 6 Inch Duct Quiet Ventilation Fan, Decorative White Trim, Easy to Install
Brand: Tech Drive
Color: White
Electric fan design: Exhaust Fan
Power Source: ac
Style: Modern
Product Dimensions
9.2″D x 9.2″W x 6.6″H

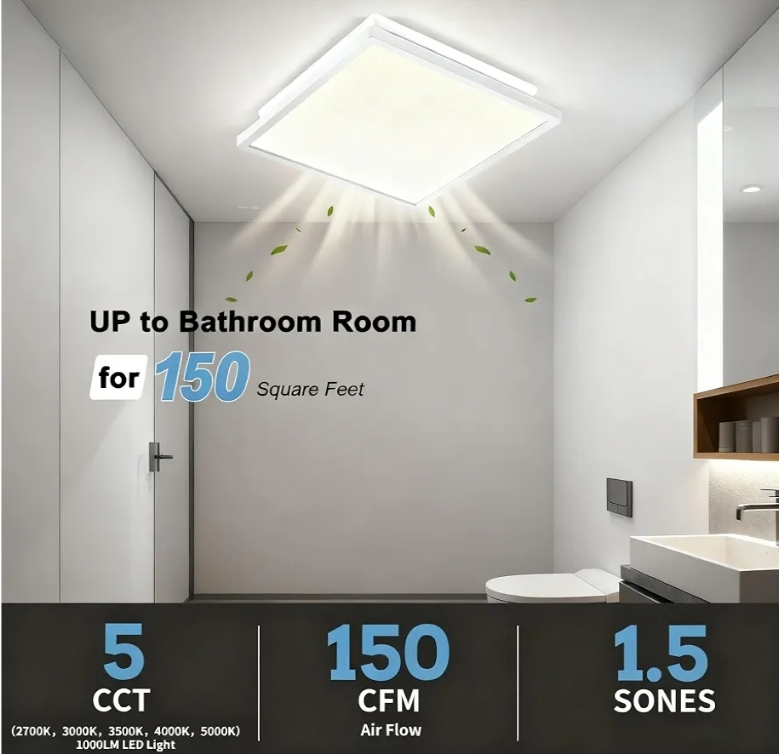

New Design Version: The innovative edge-wrapping process for the housing edges enhances the housing’s sturdiness. Quick roomside installation and the snap-on air outlet duct design make the installation simpler and more convenient. This very quiet bathroom fan (1.5 sones) delivers strong air movement (150 CFM), ideal for bathrooms up to 155 sq. ft, and effectively supports moisture removal.

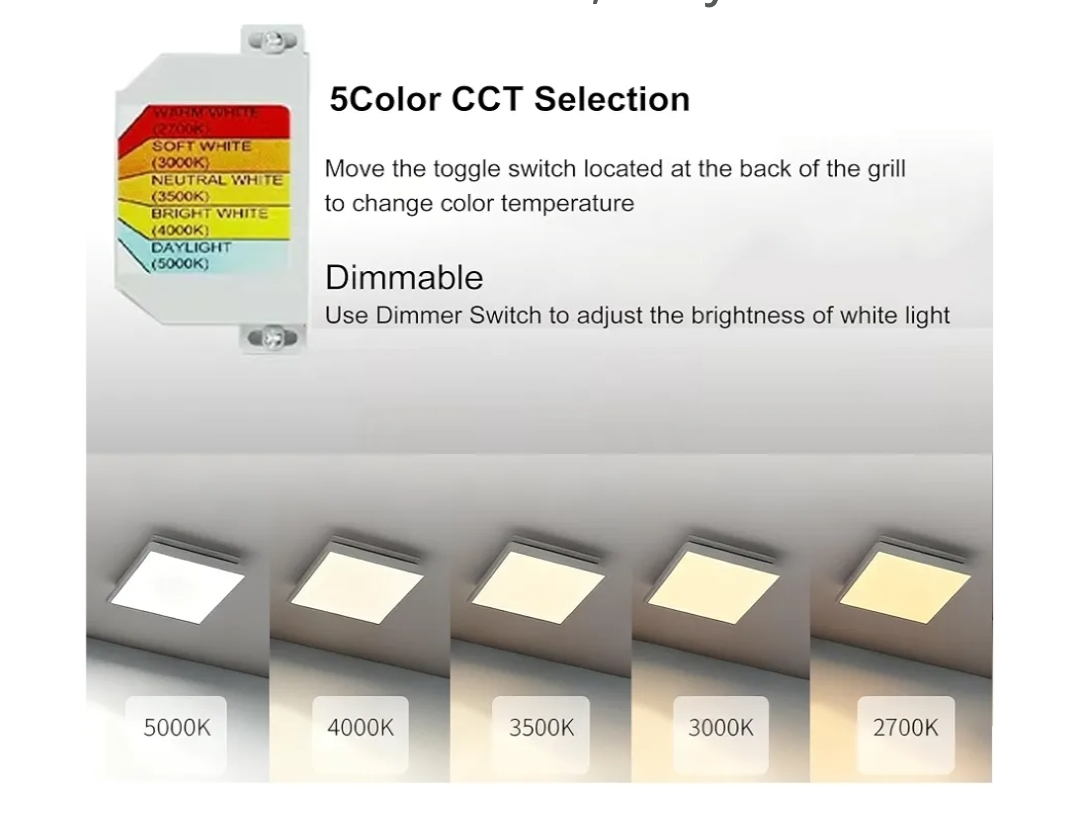

1000LM & 5CCT LED Light – This bright 1000lm LED light will illuminate your entire bathroom. The bathroom exhaust fan with light has 5 adjustable color temperatures (2700K/3000K/3500K/4000K /5000K ).
Move the toggle switch on the back of the grill to change the color temperature. For dimming, use a dimmer switch to adjust the brightness of the white light.

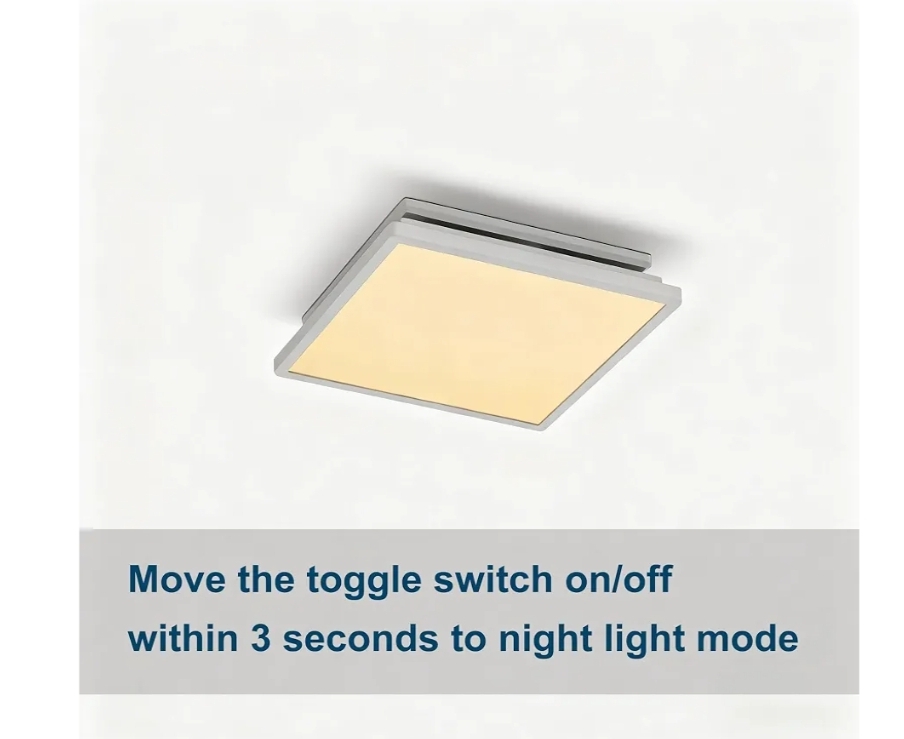

NOTE: Toggle the wall switch on and off within 3 seconds to activate Night Light mode.
Two installation options:
1. For New Construction: Attach the fan housing to the ceiling joists if the spacing between joists is under 12 in. (if the spacing between joists is 16 in. – 24 in., it can use suspension brackets.)

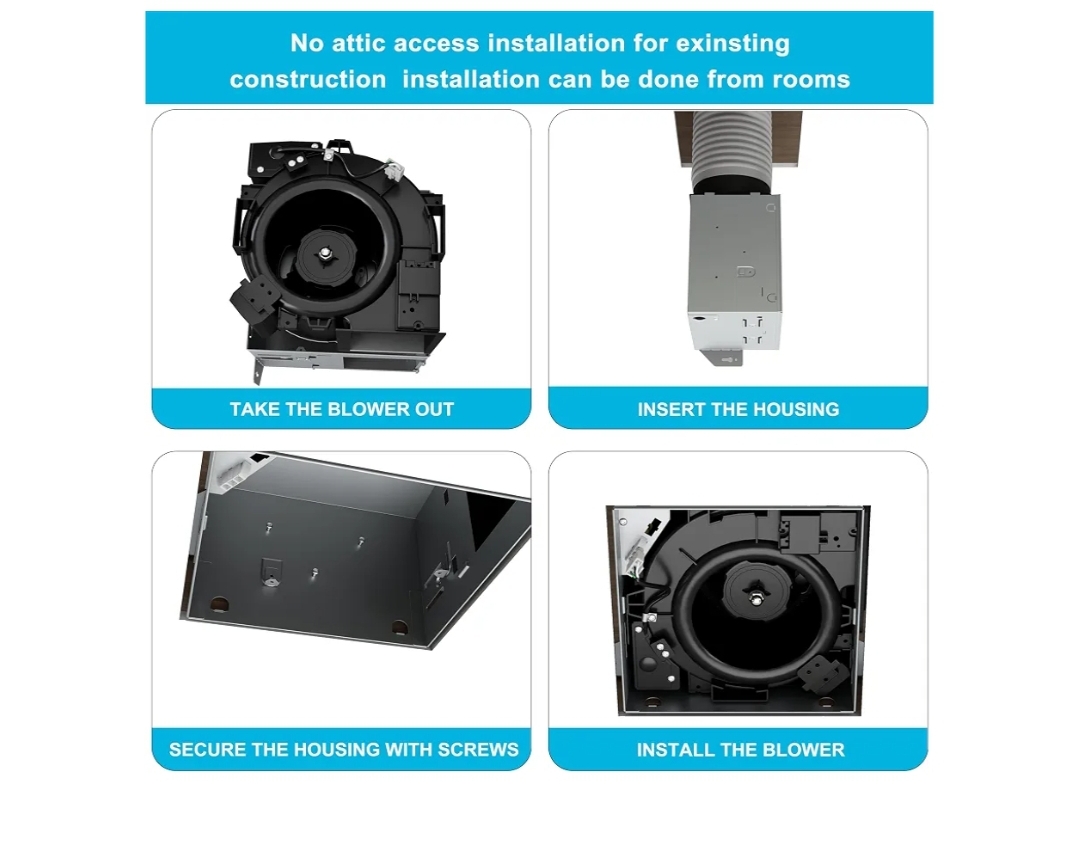

2. For Existing Construction: No attic access required, it replaces most existing bathroom fans and can be installed entirely from the ceiling side.

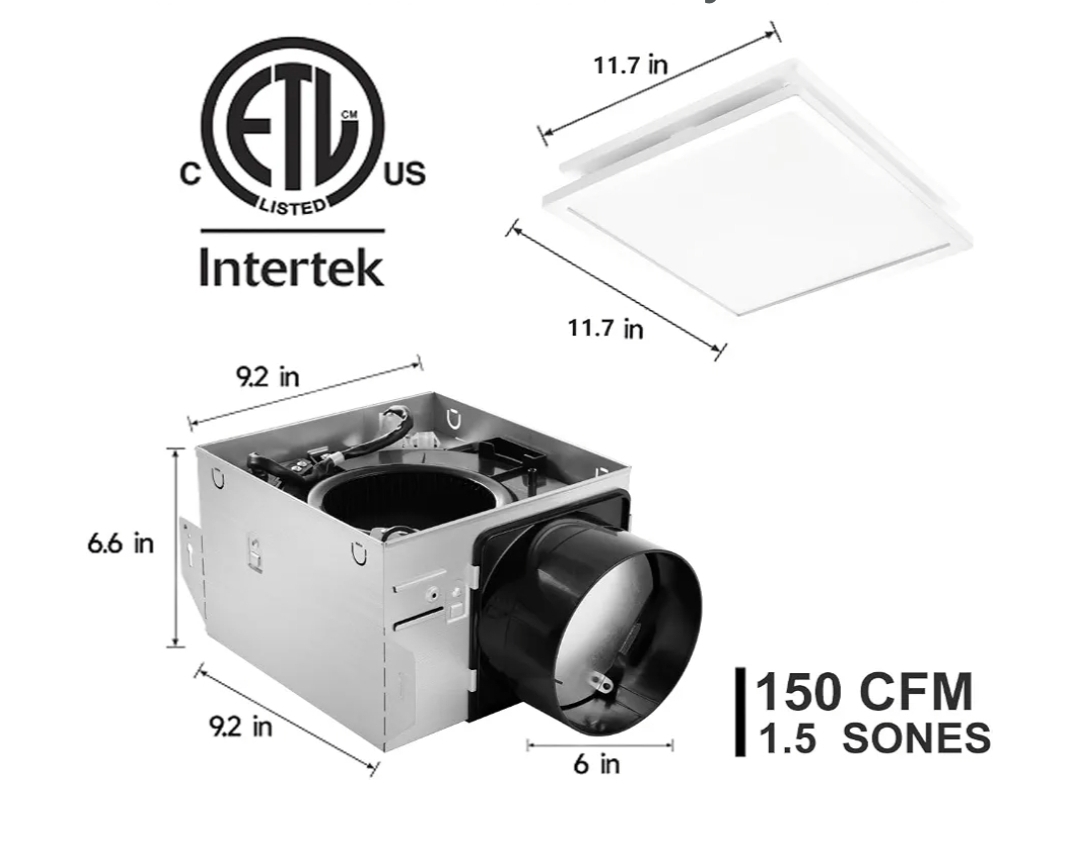

Housing Dimensions: 9.2 in x 9.2 in x 6.6 in (6-inch duct included). Ceiling Mounting Opening: 9.5 in x 9.5 in. Efficient and quiet, it features excellent motor performance and operates for at least 25,000 hours. Galvanized steel housing resists corrosion.
ETL certified for performance assurance. Suitable for use over bathtubs or showers when installed on a GFCI-protected branch circuit.
