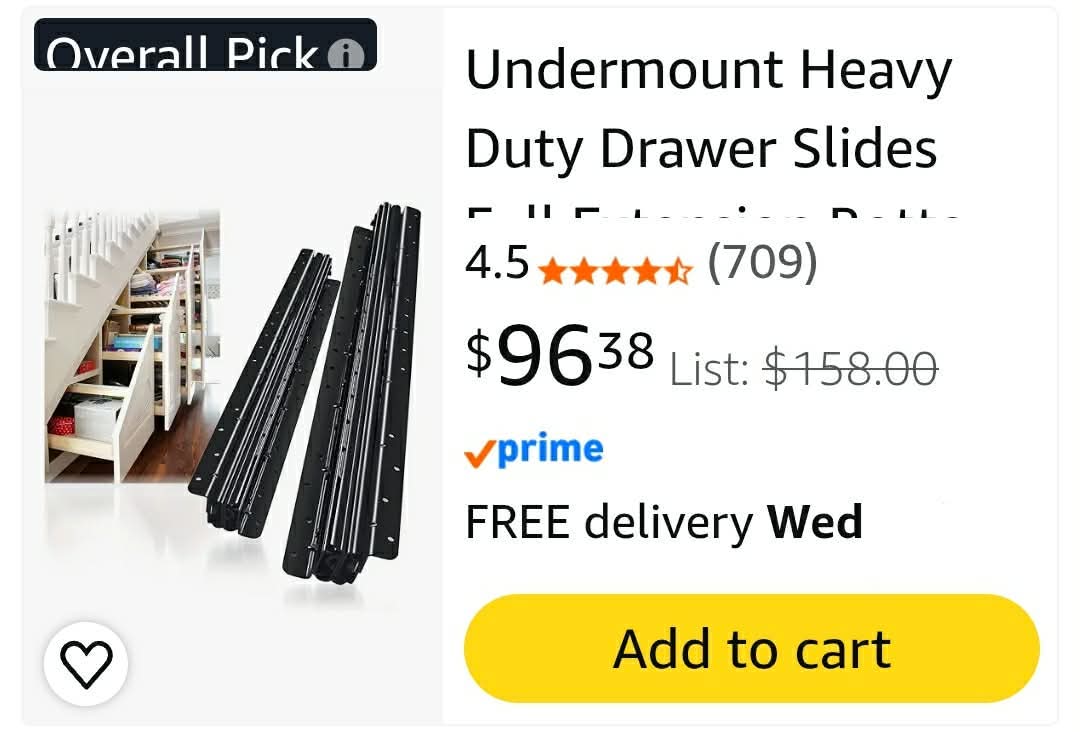

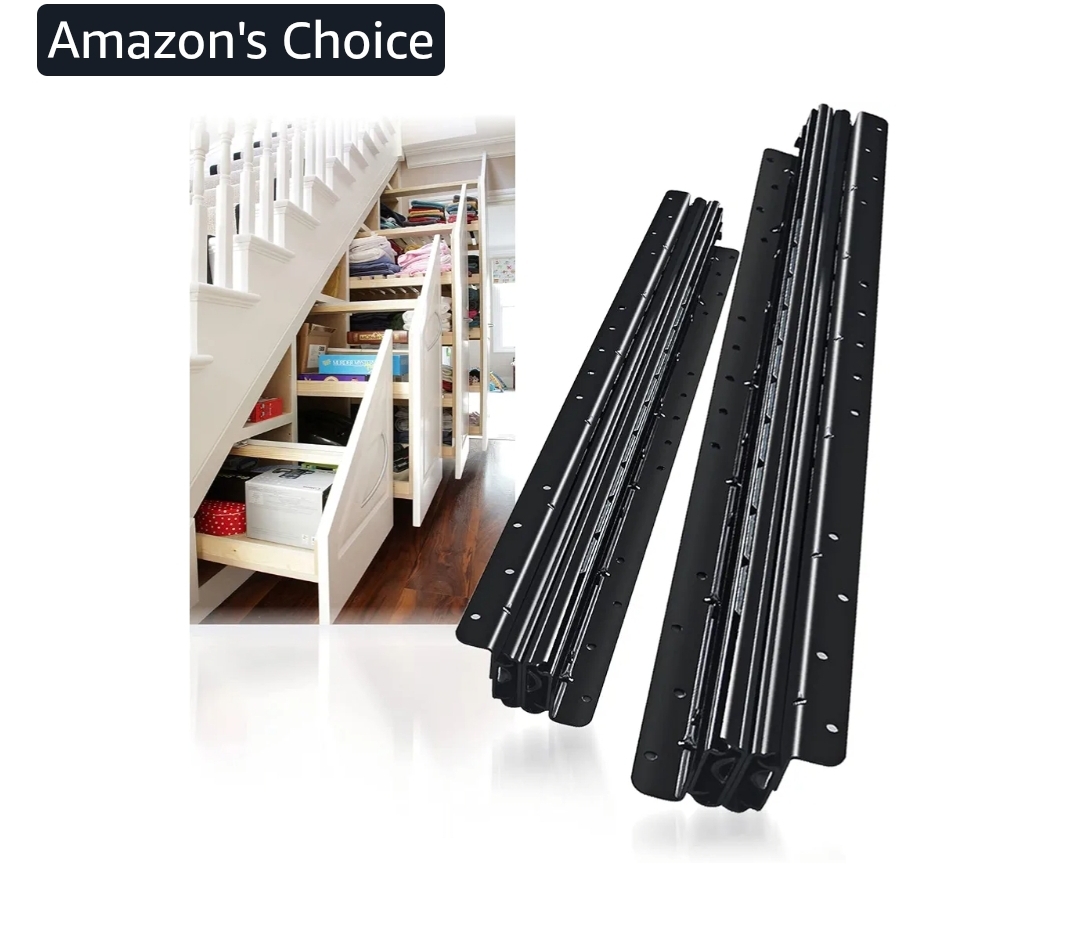

4362: New Undermount Heavy Duty Drawer Slides Full Extension Bottom Mounted 40 Inch Hidden Under Ball Bearing Metal Rails Track Guide Glide Runners 200 Lb 1 Pair (Bottom Mounted, 40 Inch (1000mm)
Color: Black
Material: Metal
Brand: YENUO
Product Dimensions
40″L x 3.23″W x 2.12″Th
Finish Type: Steel
Mounting TypeBottom Mount

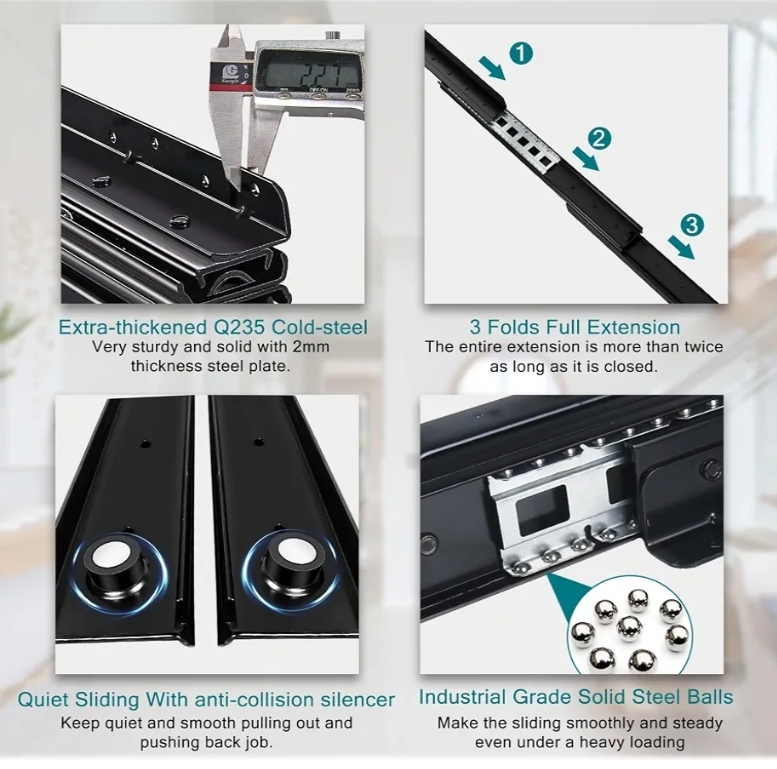

📊Maximum Load Capacity：200lb 💪Heavy duty undermount drawer slides are crafted from 2mm thick high-density, high-strength cold-rolled steel. 🏗️Maintains drawer stability and safety even when loaded with up to 200lb, passing 800,000 full-load opening/closing tests without damage. ⚡The slides have a service life of 30 years! ⏳

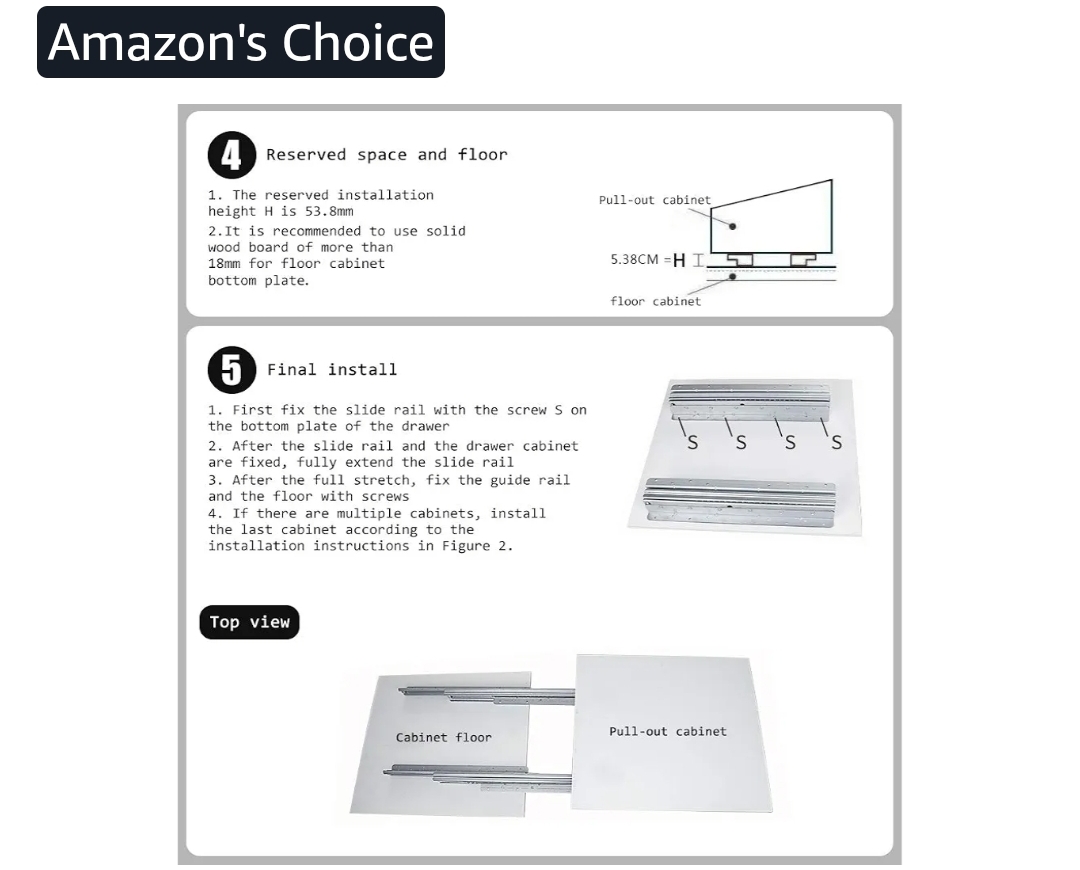

📋Installation Notes：📏 Suitable for drawers with an internal depth of ≥ 41″-46″.🔧 Undermount installation requires proper clearance underneath the drawer.⚠️ Minimum installation clearance (under the drawer): 2.1 inches (53.8 mm).📦 Attention: One set includes a pair of slides (mounting screws NOT included).🔩 You can purchase different M4 screws according to your specific installation scenario.

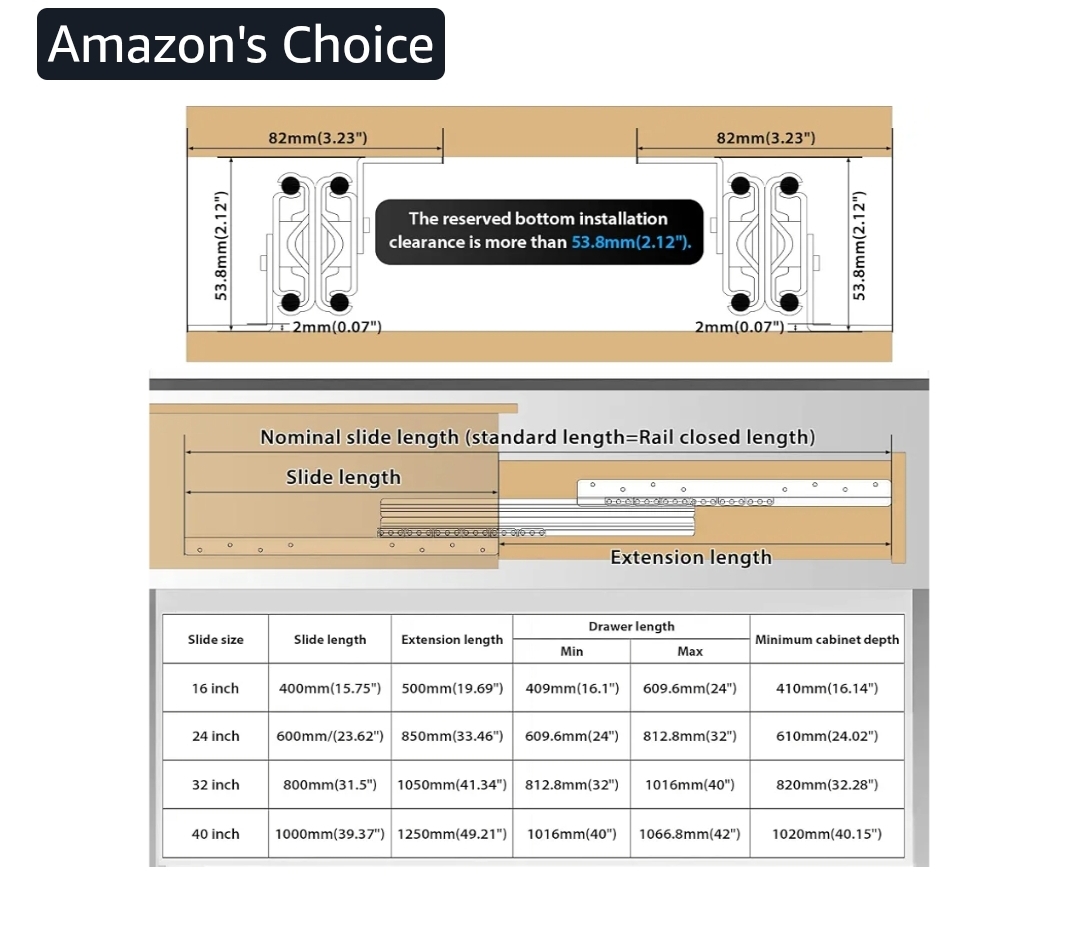

🔄 3-Fold Full Extension Design 📏Slide Length: 40 inch (1000 mm)一Fully Extended Length: 88 inch (2250 mm)一Bottom Installation Gap: 2.1 inches (53.8 mm).The fully extended length intentionally exceeds twice the closed length, delivering ample space for secure screwing during staircase installation 🏗️.Boasting full extension functionality, the drawer pulls out completely — allowing easy access to the entire storage space without blind reaching 📦.

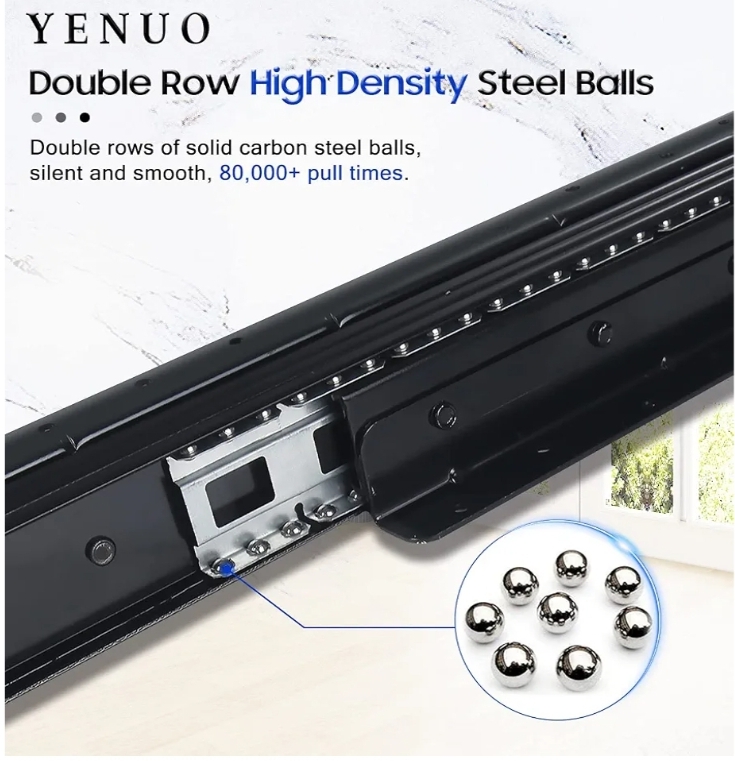

✨ Anti-rust & Ultra-Smooth Operation ✨Our drawer slides boast superior anti-rust and anti-oxidation performance, thanks to the special electrophoretic coating surface treatment 🛡️! Equipped with industrial-grade solid steel balls inside ⚙️, they minimize frictional resistance to ensure ultra-smooth, quiet sliding—while significantly boosting load-bearing capacity for long-lasting reliability!

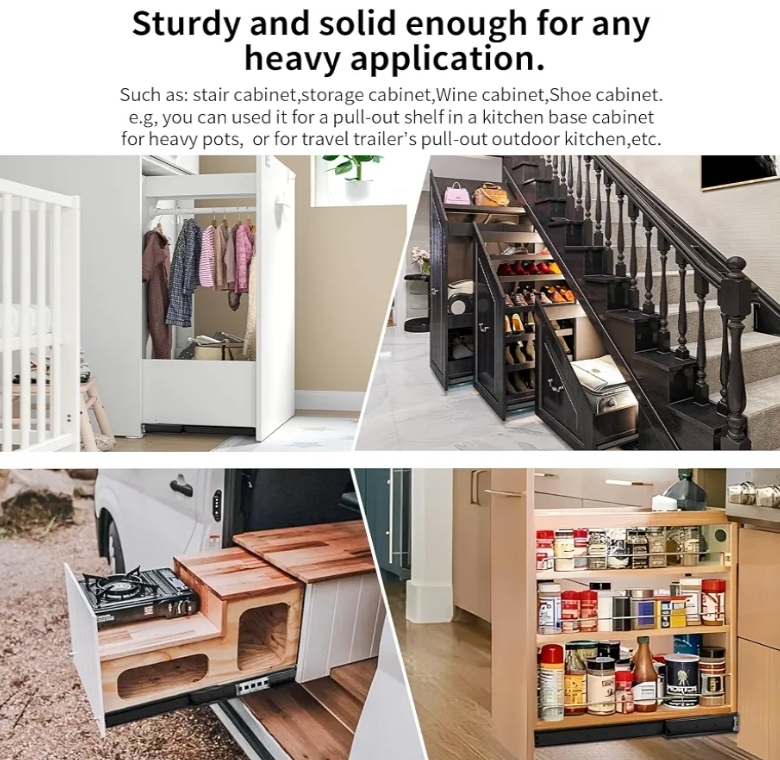

🏠 Versatile Application & Professional Support 🏠Perfect for under-stair cupboards and staircase cabinets 🪜—unlocking the “storage miracle” of awkward staircase spaces! Also ideal for heavy-duty drawers requiring strong load-bearing capacity, such as wine cabinets 🍷, wardrobes 🧥, and more. YENUO Hardware is a professional manufacturer focusing on mid-to-high-end slide rails and hinges ⚙️.
